Anatomy of the Periodic Table

The periodic table of elements is an organized—you guessed it—table arranging elements in increasing order of atomic number (and coincidentally, atomic mass). It is “periodic” in nature because it follows a cyclical or rhythmic pattern of trends, which help to explain the basis of chemical behavior of elements and the driving force of reactions. Think of the periodic table as the “Di Vinci Code” of chemistry. It all lines up perfectly to form columns and rows of elements that have many common traits!

Organization:

Periods: Rows of the periodic table
Groups/Families: Columns of the periodic table

  • Group I: Alkali metals
  • Group II: Alkaline Earth metals
  • Group VI: Chalcogens
  • Group VII: Halogens
  • Group VIII: Noble gases
  • Middle Section (short columns): collectively called the “Transition Metals”
  • Lower Table: the two periods disconnected from and sitting just below the main periodic table are called the “Inner Transition Metals”

Periodic-Table

Element Names:

Each element is listed in its unique “block” on the periodic table. Elements have a one or two letter symbol, typically the first letter or first two letters of their names. But some elements’ symbols are based on their Latin names.

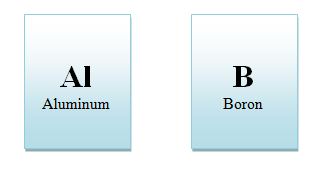

Notice below, aluminum’s symbol uses the first two letters: Al. The first letter is always capitalized; the second is not. Boron also follows the pattern of using part of the element’s name in its symbol. Single letter element symbols are always capitalized.

Reg Element Symbols

But potassium uses its Latin name, kalium, in its symbol of K.

K

Numbering: Groups are numbered from I-VIII with an “A” notation for tall columns and a “B” notation is given to shorter columns called the transition metals.

The last two rows separate from the table are called the inner transition metals, individually known as the lanthanides (row 6) and actinides (row 7).

Metals and Nonmetals: There is a also a diagonal line of demarcation to separate metals from nonmetals, beginning with No. 5 boron (B) and ending with No. 84 polonium (Po) and No. 85 astatine (At). To left are metals (gray) and to the right are nonmetals (pink). Elements falling along that line are called metalloids (blue), which possess both metallic and nonmetallic properties.

Periodic-Table2

Metallic Properties: solid (only Hg is liquid), malleable, ductile, conduct electricity, shiny

Nonmetallic Properties: can be varying physical states, fragile, poor conductors, dull

Metalloids: have both metallic and nonmetallic properties; also called semimetals

Advertisements

2 responses to “Anatomy of the Periodic Table

  1. Why is the two columns disconnected from the periodic table?

  2. Are you referencing the two rows at the bottom of the graphic? If so, that has to do with the electron configurations of these elements. A more detailed explanation of why this is the case can be found here: http://chemistry.about.com/od/periodicproperties/f/Why-Are-The-Lanthanides-And-Actinides-Separate-On-The-Periodic-Table.htm
